filtering

This notebook compare the jax implementation of Butterworth filter with scipy sosfiltfilt.

Performances of the 'sinc' mode can be found in the convolve benchmark as it is the function being called underneath.

⚠️ Warning: We do not recommend using GPU for filtering as it is much slower for the moment compared to CPU.

import os
import numpy as np
import pynapple as nap
from time import perf_counter
import matplotlib.pyplot as plt

import warnings
warnings.filterwarnings("ignore")

Machine Configuration

import jax
print(jax.devices())

Out:

[CpuDevice(id=0)]

def get_mean_perf(tsd, mode, n=10):
    tmp = np.zeros(n)
    _ = nap.apply_lowpass_filter(tsd, 0.25 * tsd.rate, mode=mode)
    for i in range(n):
        t1 = perf_counter()
        _ = nap.apply_lowpass_filter(tsd, 0.25 * tsd.rate, mode=mode)
        t2 = perf_counter()
        tmp[i] = t2 - t1
    return [np.mean(tmp), np.std(tmp)]

Increasing number of time points

def benchmark_time_points(mode):
    times = []
    for T in np.arange(1000, 100000, 20000):
        time_array = np.arange(T)/1000
        data_array = np.random.randn(len(time_array))
        startend = np.linspace(0, time_array[-1], T//100).reshape(T//200, 2)
        ep = nap.IntervalSet(start=startend[::2,0], end=startend[::2,1])
        tsd = nap.Tsd(t=time_array, d=data_array)#, time_support=ep)
        times.append([T]+get_mean_perf(tsd, mode))
    return np.array(times)

Calling with numba/scipy

nap.nap_config.set_backend("numba")
times_butter_scipy = benchmark_time_points(mode="butter")

Calling with jax

nap.nap_config.set_backend("jax")
times_butter_jax = benchmark_time_points(mode="butter")

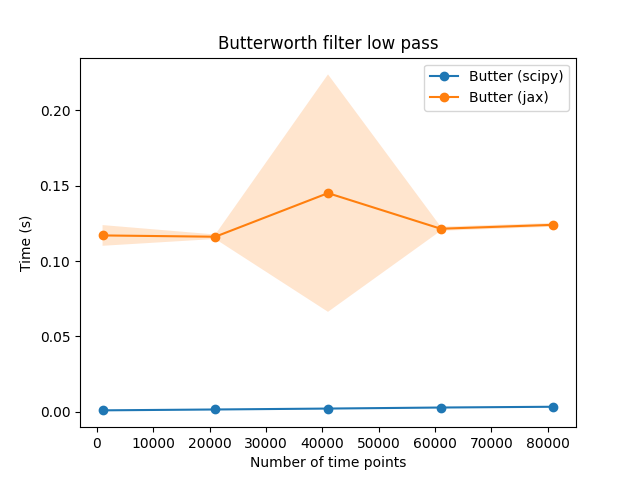

Figure

plt.figure()
for arr, label in zip(
    [times_butter_scipy, times_butter_jax],
    ["Butter (scipy)", "Butter (jax)"],
    ):
    plt.plot(arr[:, 0], arr[:, 1], "o-", label=label)
    plt.fill_between(arr[:, 0], arr[:, 1] - arr[:, 2], arr[:, 1] + arr[:, 2], alpha=0.2)

plt.legend()
plt.xlabel("Number of time points")
plt.ylabel("Time (s)")
plt.title("Butterworth filter low pass")
# plt.show()

Butterworth filter low pass

Out:

Text(0.5, 1.0, 'Butterworth filter low pass')

Increasing number of dimensions

def benchmark_dimensions(mode):
    times = []
    T = 60000
    for n in np.arange(1, 100, 20):
        time_array = np.arange(T)/1000
        data_array = np.random.randn(len(time_array), n)
        startend = np.linspace(0, time_array[-1], T//100).reshape(T//200, 2)
        ep = nap.IntervalSet(start=startend[::2,0], end=startend[::2,1])
        tsd = nap.TsdFrame(t=time_array, d=data_array, time_support=ep)
        times.append([n]+get_mean_perf(tsd, mode))
    return np.array(times)

Calling with numba/scipy

nap.nap_config.set_backend("numba")
dims_butter_scipy = benchmark_dimensions(mode="butter")

Calling with jax

nap.nap_config.set_backend("jax")
dims_butter_jax = benchmark_dimensions(mode="butter")

Figure

plt.figure()

for arr, label in zip(
    [dims_butter_scipy, dims_butter_jax],
    ["Butter (scipy)", "Butter (jax)"],
    ):
    plt.plot(arr[:, 0], arr[:, 1], "o-", label=label)
    plt.fill_between(arr[:, 0], arr[:, 1] - arr[:, 2], arr[:, 1] + arr[:, 2], alpha=0.2)

plt.legend()
plt.xlabel("Number of dimensions")
plt.ylabel("Time (s)")
plt.title("Butterworth filter low pass")
plt.show()
